Digital Forensic Imaging, Cloning and Erasing Solutions

Media Duplication Systems supplies digital computer forensic solutions suitable for mobile investigators or for a forensic laboratory. These units provide blazing speeds at over 15TB/hour, write-blocking, multi-source/destination imaging, the ability to image to/from a network location and a long list of features that streamline the forensic imaging process. Seize data from computers without removing drives and from computers with drives that are defective.



  • 15 TB/hour cumulative speed of imaging
  • Thunderbolt, PCIe M.2 NVMe/SATA SSD
  • 12+ Simultaneous Imaging Sessions (18 ports total)
  • Forensic imaging to E01, AFF4 and RAW files
  • Image both good and damaged drives
  • Lifetime warranty with subscriptions
Forensic Data Recovery Tool

AIF SATA/USB/IDE/1Gb Drive Forensic Imager

  • 1.8TB/hour cumulative speed of imaging
  • SAS, Thunderbolt, 10Gb, M.2 PCIe/SATA SSD
  • Image to 3 targets drives per session
  • Forensic imaging to E01, AFF4 and RAW files
  • Image both good and damaged drives
  • Lifetime warranty with subscriptions
MSI Plus Portable Forensic Imager

MSI Portable Forensic Drive Cloning & Imaging

  • Extremely Fast Forensic Imaging
  • Multiple Source and Destination in Parallel Sessions
  • Selective Capture - Files and Folders
  • Virtual Drive Emulator - View, Share and Copy files
  • Remote Capture - Unopened PC and Laptops
  • Cell phone Data Extraction - Cellebrite, XRY
  • Triage Data Collection - ADF, Encase
  • Forensic Analysis - Encase, FTK
MSI Desktop Forensic Drive Cloning

MSI Desktop Forensic Drive Cloning & Imaging

  • Acquire data from “Evidence” drives up to 93.7GB/min
  • Hash MD5, SHA-1, SHA-2 on the fly
  • Encryption/Decryption with AES256 on-the-fly
  • Forensic capture: Mirror, DD, E01, Mix DD/E01
  • Supports SCSI, IDE, SATA, SAS, USB, 1394, SCSI, FC
  • Supports Micro-SATA, Mini-SATA, 1.8", 2.5", 3.5"
  • Supports Linux, Mac and Windows
  • Seize Data from unopened PC or Notebook
Drive Cloning, Erasing & Forensic Imaging

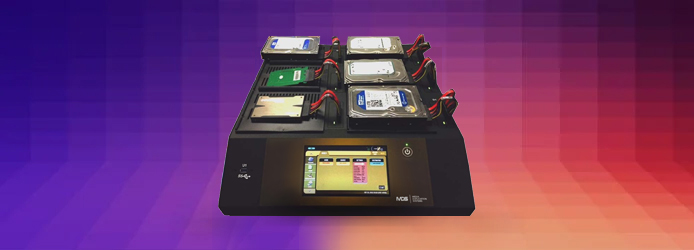

FX-AIO Drive Cloning, Erasing & Forensic Imaging

  • Image up to 50GB/min or Clone up 90GB/min
  • Supports Thunderbolt, USB-C, SCSI, FC, SAS, SATA, PCIe
  • Image/Verify up to 5 Sources up to 9 target concurrently
  • Two 10GbE ports for fast network imaging performance
  • Capture from mobile devices and cloud storage
Network-Capable Forensic Imager & Uploader

FZXI Drive Cloning, Erasure & Forensic Imaging

  • Up to 50GB per minute imaging speeds
  • Designed for digital forensic labs
  • Three Gigabit Ethernet ports
  • Image to network volume from 3 drives concurrently
  • Supports dd, ex01, e01, or native imaging
