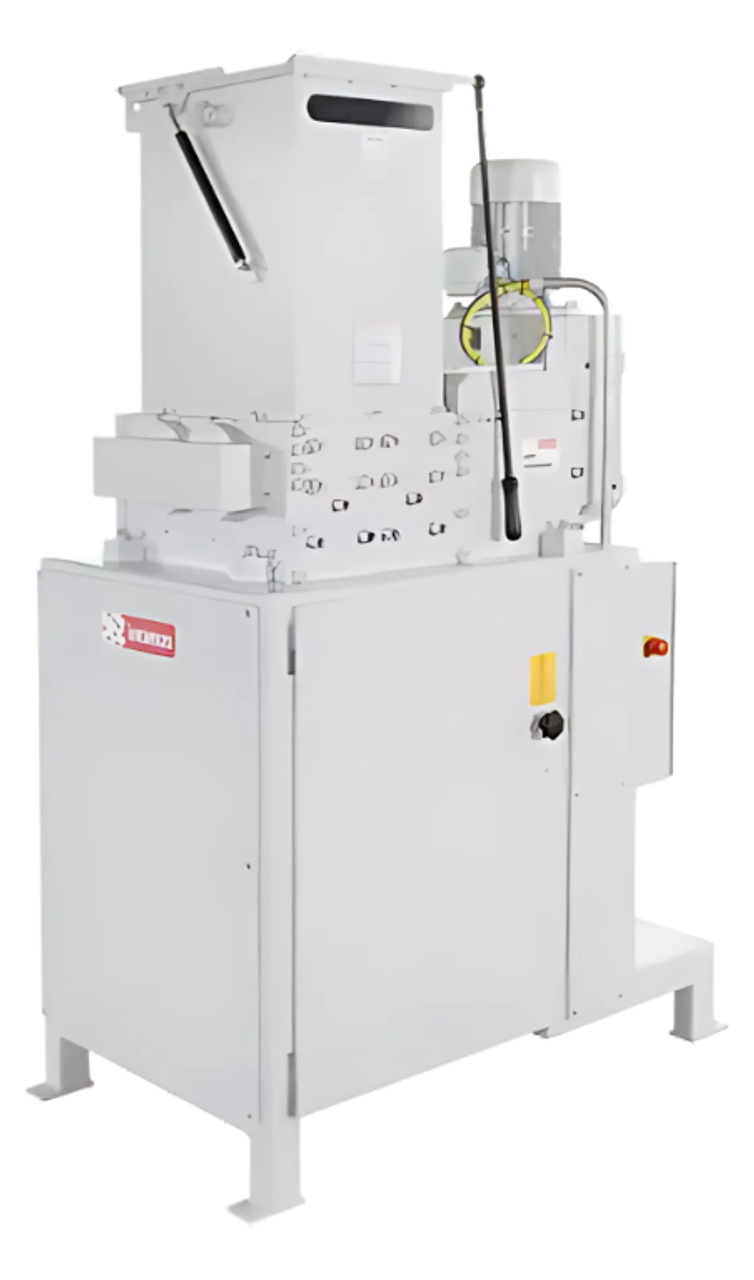

Hard Drive Granulator – Shreds HDDs to 14mm or Smaller in Seconds
The HDD Granulator is an industrial-grade data destruction system engineered for maximum-security environments. Built with German precision and certified to meet DIN 66399 H-5 standards, this powerful media shredder disintegrates hard drives into fine particles that eliminate any chance of data recovery—even from highly skilled forensic tools.
At the heart of the system lies a pair of counter-rotating, hardened knife-discs mounted on dual steel shafts. These robust cutting cylinders are housed within a reinforced sheet steel enclosure and can be paired with optional screen inserts ranging from 6 mm to 14 mm, allowing you to control the final particle size to meet your compliance requirements. An integrated PLC controller (Eaton EASY 512) monitors torque, load, and feed timing—automatically reversing the drive if resistance is detected, and shutting down after multiple reverts to prevent overload.
Designed for Throughput, Safety, and Precision
Engineered for high-security installations, the HDD Granulator features a 380 x 500 mm cutting chamber, 4 kW motor, and a 240-liter integrated waste bin for continuous-duty operation. Media is inserted via a wide hopper and processed based on screen size and drive type. Intelligent automation, emergency stop systems, and optional full-bin sensors help operators run the machine safely and efficiently.
Suggested HDD Throughput by Screen Size
The following table outlines recommended feed rates for different types of 3.5” hard drives based on the installed screen size. Lighter drives and smaller media may be processed at shorter intervals depending on load and thermal buildup.
HDD Type | 6 or 8 mm Screen | 10 mm Screen | 12 mm Screen | 14 mm Screen |
---|---|---|---|---|
3.5" HDD (≤ 520g) | 1 HDD every 3 min | 1 HDD every 2 min | 1 HDD every 75 sec | 1 HDD every 45 sec |
3.5" HDD (≤ 620g) | 1 HDD every 190 sec | 1 HDD every 150 sec | 1 HDD every 90 sec | 1 HDD every 55 sec |
3.5" HDD with tray caddy | 1 HDD every 280 sec | 1 HDD every 215 sec | 1 HDD every 130 sec | 1 HDD every 80 sec |
Note: Shorter intervals may be acceptable for smaller or lighter HDDs depending on system load and heat buildup.
Key Features
- Certified to DIN 66399 security level H-5 with B60 screen
- Hardened steel dual-shaft cutting system with overload protection
- Choice of six screen sizes from 6 mm to 14 mm
- Shreds HDDs up to 5.25” thick, including hot-swap caddies
- 4 kW industrial motor with automatic reversing logic
- Programmable logic controller with fault detection and idle shutdown
- Large feed hopper with 240-liter removable waste bin
- Designed for quiet operation: 80–85 dB(A)
Whether you’re operating a government facility, corporate data center, or IT asset disposition service, the HDD Granulator provides the performance, compliance, and security needed to permanently destroy data-bearing devices—efficiently and irreversibly.
HDD Granulator – Technical Specifications | |
---|---|
Media Type: | 3.5” hard disk drives (HDDs) |
Max Drive Weight: | Up to 620 g (with tray caddy) |
Cutting Zone: | 380 x 500 mm (14.96 x 19.69 in) |
Shred Size Output: | 6 to 14 mm (0.24 to 0.55 in) |
Security Level: | DIN 66399 H-5 (with B60 screen) |
Screen Options: | 6, 8, 10, 12, 14 mm (0.24–0.55 in) |
Feed Rate: | Up to 1 HDD every 45 seconds (520g, 14 mm screen) |
Drive Motor Power: | 4 kW |
Electrical Requirements: | 245V / 60Hz / 3-Phase + PE (optional 400V model) |
Auto-Reverse Protection: | Yes – torque-sensing PLC controller |
Control System: | Eaton EASY 512 PLC with idle shutdown |
Waste Bin Capacity: | 240 liters (63.4 gallons) |
Construction: | Powder-coated steel with locking front door |
Noise Level: | 80–85 dB(A) |
TAA Compliant: | Yes |
Dimensions (W x D x H): | 1260 x 830 x 2150–2560 mm (49.61 x 32.68 x 84.65–100.79 in) |
Shipping Dimensions: | 1880 x 1100 x 2200 mm (74.02 x 43.31 x 86.61 in) |
Net / Gross Weight: | 1,090 kg / 1,350 kg (2,403 lb / 2,976 lb) |
Videos Hide Videos Show Videos
Custom Field
- Shreds 3.5” HDDs into 6–14 mm particles
- DIN 66399 H-5 compliant (with B60 screen)
- Auto-reverse protection with PLC control
- 5.36 HP motor, 240L bin, 80–85 dB(A), TAA compliant
