SS-Mobile Series | Portable PCIe NVMe/SAS/SATA Drive Duplicator & Eraser
Enterprise-Grade Portable Drive Duplication & Sanitization Solutions
The MDS SS-Mobile Series delivers blazing-fast drive duplication at speeds up to 31GB/min in a rugged, portable configuration. Designed for IT professionals, field technicians, and data centers, these units feature broad interface support including PCIe NVMe, SATA, USB 3.0, SAS, and FireWire. With multi-session capability, you can clone, wipe, and hash drives simultaneously while maintaining NIST 800-88 and DoD compliance. Each unit ships in a military-grade Pelican case, ready for demanding field operations. Available in three configurations—Standard for core operations, PRO with native SAS support and extended warranty, and Ultra with complete interface coverage—the SS-Mobile Series transforms hours of data operations into minutes.
Performance Configurations
SS-Mobile Standard
- Native PCIe, SATA, USB 3.0 support

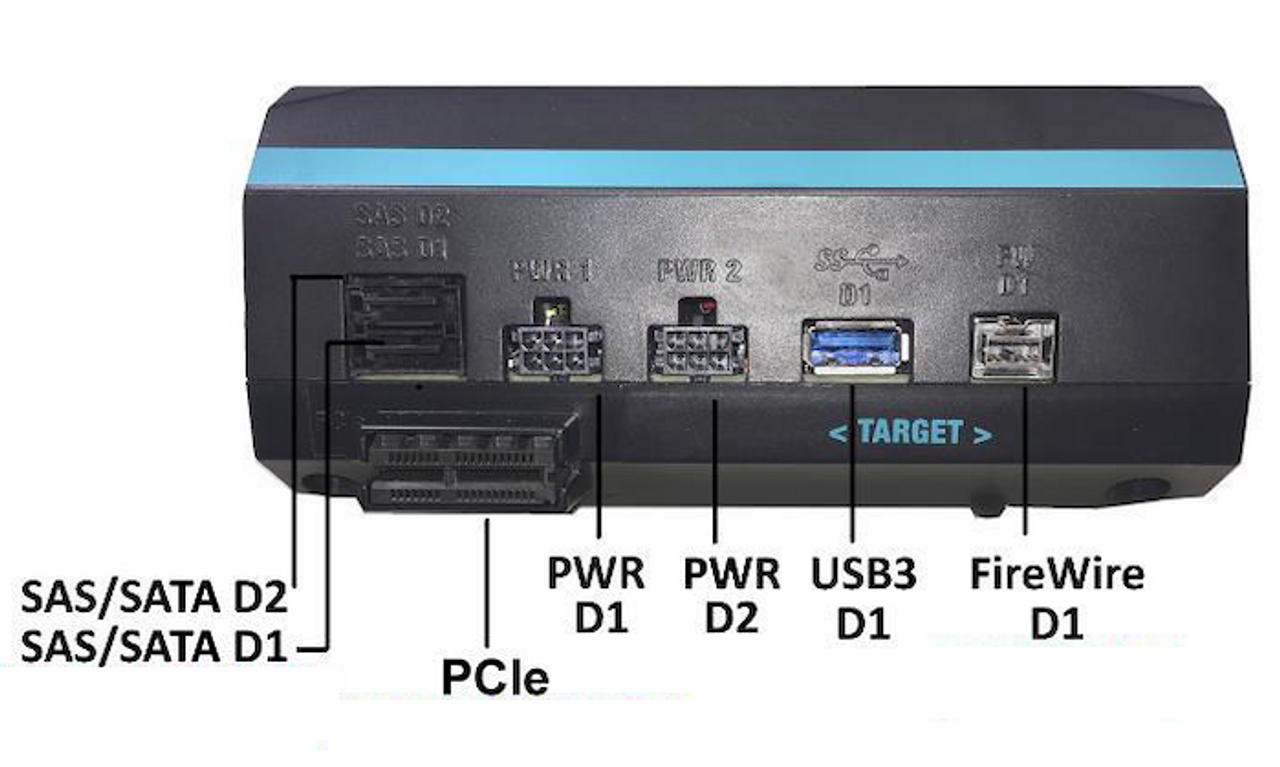

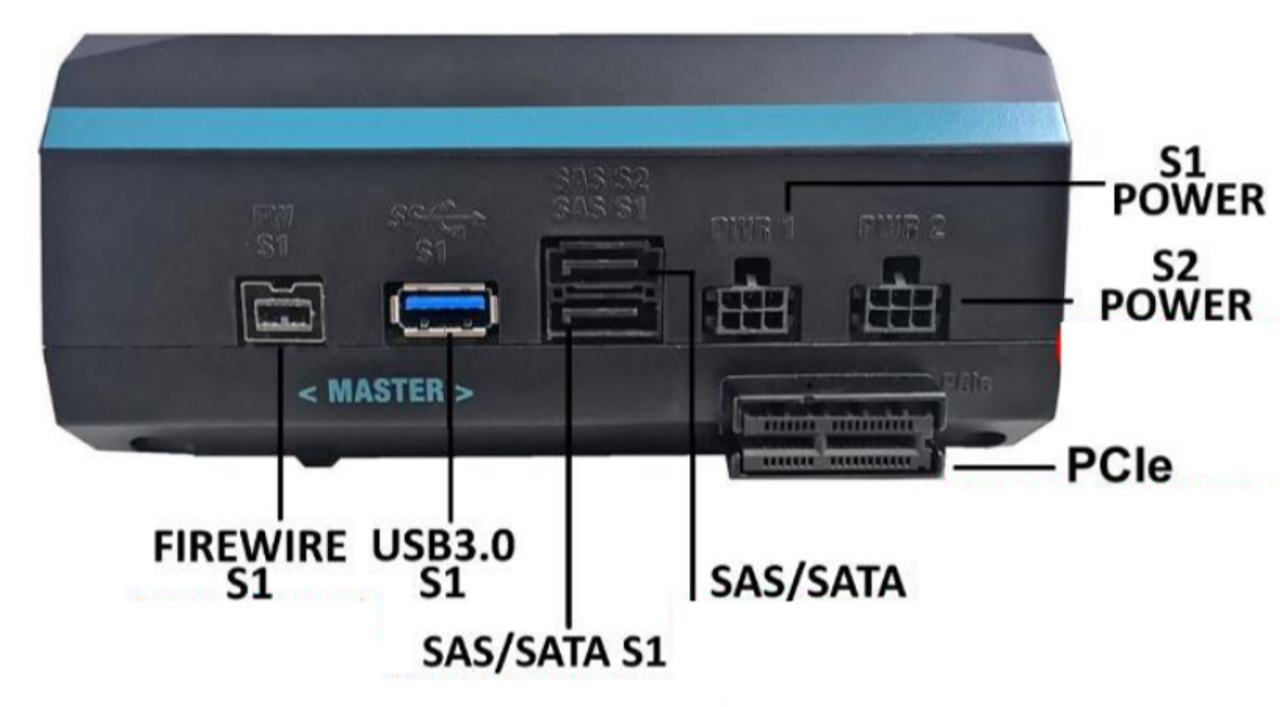

- 2 SATA master ports (write-protected), 2 SATA target ports
- 1 PCIe port each for master/target operations
- M.2 NVMe/SATA/mSATA/mini-PCIe support via included adapters
- 1-year limited warranty
- Ideal for: IT departments, system integrators, field technicians
SS-Mobile PRO
- Everything in Standard PLUS:
- Native SAS support on all 4 ports (2 source, 2 target)
- Support for SAS-1 through SAS-4 drives
- Direct server drive cloning without adapters
- 2-year limited warranty
- Ideal for: Data centers, enterprise IT, server maintenance
SS-Mobile Ultra
- Everything in PRO PLUS:
- Native FireWire port (1 master, 1 target)
- Enhanced SATA capability (3 masters to 3 targets)
- Mac Target Disk Mode support via FireWire
- Support for U.2/U.3, CF, SD, eSATA, IDE/ATA
- 3-year limited warranty
- Ideal for: Forensics, multi-platform environments, maximum flexibility
Why Choose The SS-Mobile Series?
Unmatched Performance
- 31GB/min transfer rates: Complete 500GB drive in under 20 minutes
- Multi-session operation: Run up to 5 concurrent tasks across different ports
- Write-protected masters: All source ports hardware-blocked for data integrity
- Browser-based interface: Control locally or remotely via network
Complete Compliance
- NIST SP 800-88 R1: Meet federal data sanitization requirements
- DoD 5220.22-M: Military-grade 7-pass erasure with verification
- TAA/BAA compliant: Approved for government contracts
- Digital signatures: Tamper-evident audit logs with authentication
- Exportable reports: PDF, HTML, XML formats for compliance documentation
Field-Ready Design
- Pelican case included: Military-grade protection standard on all models

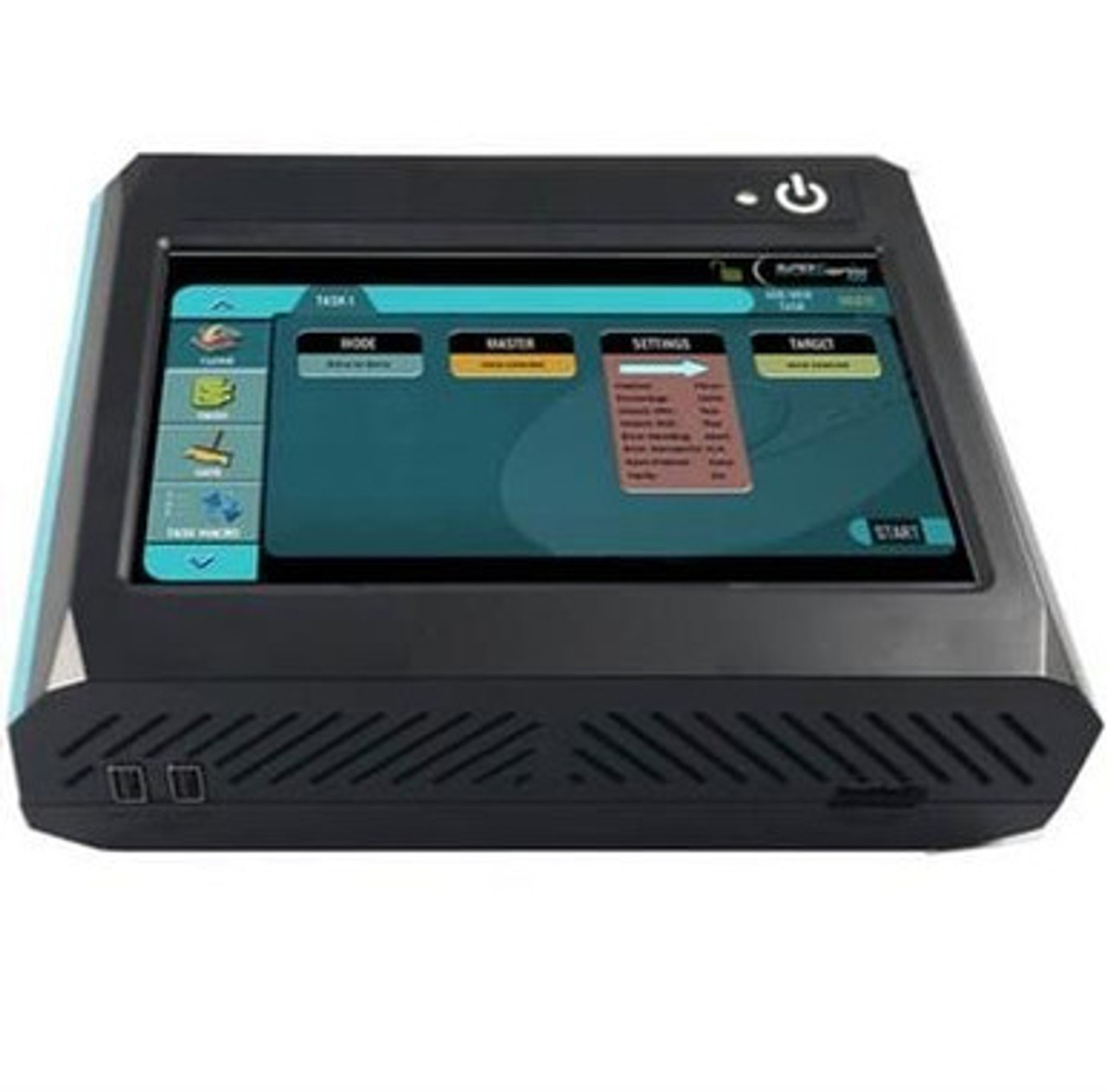

- 7" touchscreen display: Intuitive operation with swipe gestures
- HDMI output: Connect external monitor for presentations
- Hot-swappable drives: Replace drives without stopping operations (PCIe requires power-off)
Interface Capabilities by Model
| FEATURE / INTERFACE | SS-MOBILE STANDARD | SS-MOBILE PRO | SS-MOBILE ULTRA |
|---|---|---|---|
| Pelican Case: | Included | Included | Included |
| Native SATA: | 2 Masters, 2 Targets | 2 Masters, 2 Targets | 3 Masters, 3 Targets* |
| Native PCIe: | 1 Master, 1 Target | 1 Master, 1 Target | 1 Master, 1 Target |
| Native USB 3.0: | 1 Master, 1 Target | 1 Master, 1 Target | 1 Master, 1 Target |
| Native SAS: | — | 2 Masters, 2 Targets | 2 Masters, 2 Targets |
| Native FireWire: | — | — | 1 Master, 1 Target |
| M.2 NVMe: | 1 Master, 1 Target | 1 Master, 1 Target | 1 Master, 1 Target |
| M.2 SATA: | 1 Master, 1 Target | 1 Master, 1 Target | 1 Master, 1 Target |
| mSATA: | 1 Master, 1 Target | 1 Master, 1 Target | 1 Master, 1 Target |
| mini-PCIe: | 1 Master, 1 Target | 1 Master, 1 Target | 1 Master, 1 Target |
| U.2/U.3 NVMe: | — | — | 1 Master, 1 Target |
| 2.5/3.5" IDE/ATA: | — | — | 1 Master, 1 Target |
| eSATA: | — | — | 1 Master, 1 Target |
| Flash Media (CF/SD): | — | — | 1 Master, 1 Target |
| Network Repository: | Optional ($) | Optional ($) | Optional ($) |
| Hash Verification: | Optional ($) | Optional ($) | Optional ($) |
| Max Speed: | Up to 31GB/min | Up to 31GB/min | Up to 31GB/min |
| Multi-Session: | 5 concurrent tasks | 5 concurrent tasks | 5 concurrent tasks |
| Warranty: | 1 Year Limited | 2 Years Limited | 3 Years Limited |
*Ultra model includes 2 USB 3.0 to SATA adapters to achieve 3 master and 3 target SATA ports total
**All non-native interfaces are achieved via included adapters, cables, or readers
***PCIe port requires unit to be powered off before connecting/disconnecting drives
Key Features & Capabilities
Cloning Excellence
- Whole Drive Mode: Bit-for-bit copy supporting all operating systems
- SmartCopy: Skip blank sectors, resize partitions to larger targets

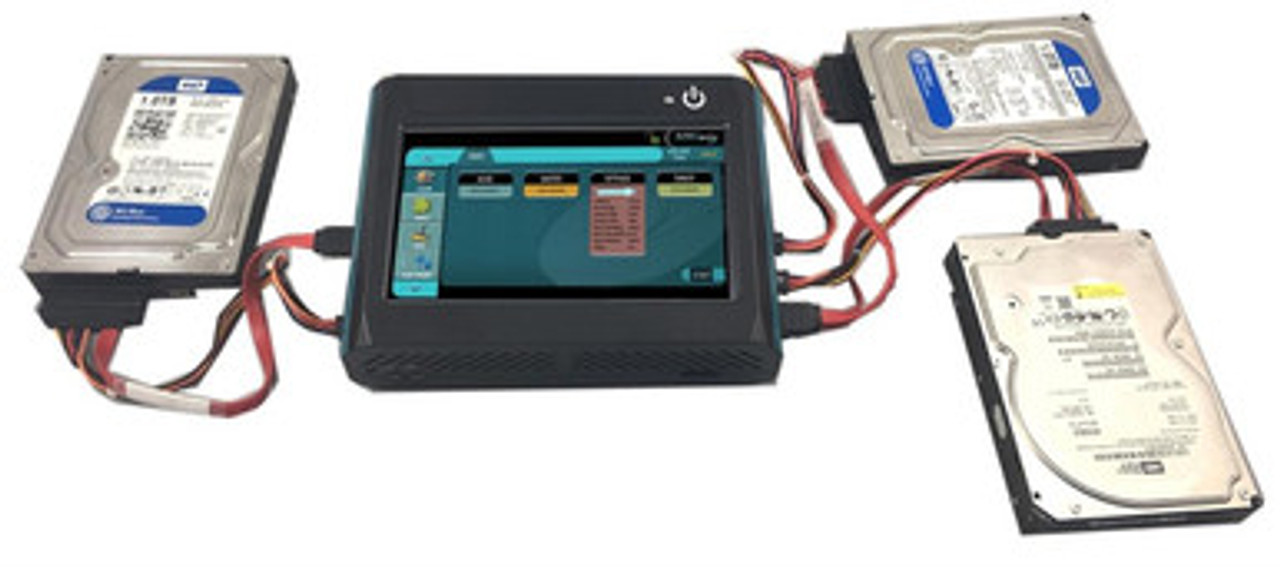

- Multi-master/multi-target: Clone from up to 3 masters to 3 targets (Ultra model)
- Cross-platform cloning: PCIe to SATA, SAS to SATA capabilities
- ATA Security support: Unlock and process security-locked drives
Data Sanitization
- Secure Erase: Hardware-level sanitization command
- DoD 5220.22-M: 7-pass overwrite with verification
- NIST Clear/Purge: Federal standard compliance
- Custom patterns: User-defined overwrite sequences (up to 7 passes)
- HPA/DCO/ACS3: Wipe hidden and protected areas
- Simultaneous wiping: Erase up to 3 target drives concurrently
Advanced Operations
- Hash verification: SHA-1, SHA-256, MD5 algorithms (optional activation)
- Bad sector handling: Skip or abort with granularity options
- Task Macros: Chain up to 9 operations sequentially
- Network cloning: Access repositories via iSCSI/SMB/NFS (optional activation)
- USB Boot Client: Clone laptops without drive removal (with networking option)
Professional Features
- Browser interface: Control remotely via web browser
- Command Line Interface: SSH/Telnet access for automation
- Audit logging: Digital signatures with PDF/HTML/XML export
- S.M.A.R.T. monitoring: Drive health assessment and reporting
- Email notifications: Task completion alerts with reports
Performance Comparison
Time to Process 100 x 500GB SSD Drives
| Method | Time Required | Labor Cost (@$50/HR) | Time Saved |
|---|---|---|---|
| Single-drive dock: | 54 hours | $2,700 | Baseline |
| SS-Mobile (any model): | 27 hours | $1,350 | 27 hours |
| SS-Mobile Ultra (3-to-3): | 18 hours | $900 | 36 hours |
| SS-Mobile (2 units): | 13.5 hours | $675 | 40.5 hours |
*Actual speeds depend on source/target drive capabilities and data patterns
Use Cases & Applications
IT Departments & System Integrators
- System deployments: Configure multiple workstations simultaneously
- Hardware refreshes: Migrate user data during equipment updates
- Disaster recovery: Rapid restoration from master images
- Remote support: Clone systems on-site without returning to base
Data Centers & Enterprise Operations (PRO/Ultra)
- Server migrations: Transfer SAS/SATA drives with minimal downtime
- Direct server cloning: Process SAS drives without adapters (PRO/Ultra)
- Compliance operations: Certified erasure with complete documentation
- High-volume processing: Ultra model handles 6 SATA drives simultaneously
Forensics & Security (Ultra)
- Evidence preservation: Write-protected source duplication
- Chain of custody: Digital signatures and audit trails
- Hash verification: SHA-1/256/MD5 validation (optional)
- Mac support: Process Mac drives via FireWire Target Disk Mode
Field Service & Mobile Operations
- On-site cloning: Complete operations at customer premises
- Mixed environments: Handle legacy IDE to modern NVMe
- Secure transport: Pelican case protects equipment and data
- Quick turnaround: Multi-session speeds field operations
Operational Excellence
Multi-Session Capability
Run up to 5 concurrent tasks across different operations:
- Simultaneous operations: Clone on SATA while wiping on PCIe
- Mixed workflows: Hash completed drives while starting new clones
- Independent ports: Each interface operates at full speed
- Task Macros: Automate sequential operations (up to 9 tasks)
Remote Management
Control your SS-Mobile from anywhere on your network:
- Web interface: Full GUI control via browser (Chrome, Firefox, Edge)
- Command Line Interface: SSH/Telnet access for scripting and automation
- Zero Configuration: Automatic network discovery via mDNS
- HTTPS support: Secure remote access with certificates
Secure Data Handling
Protect sensitive information throughout the process:
- Write-blocked sources: Hardware protection prevents accidental modification
- Verified erasure: Multiple overwrite patterns with confirmation
- Audit documentation: Complete logs for compliance requirements
- ATA Security support: Unlock and process security-locked drives
Model Selection Guide
Which SS-Mobile Is Right for You?
Each SS-Mobile model builds upon the previous tier. Standard provides core functionality for everyday IT operations. PRO adds enterprise SAS capability for direct server drive access with extended warranty. Ultra delivers maximum interface flexibility with FireWire, comprehensive adapters, enhanced SATA capability (50% more throughput), and our longest warranty.
Choose Standard When:
- Primary work involves SATA/NVMe drives
- Supporting modern PC/workstation deployments
- Budget optimization is important
- Occasional M.2 or mini-PCIe support needed
- Field service for standard IT equipment
Choose PRO When:
- Managing server/enterprise environments
- SAS drives are common in workflow
- Need direct server drive cloning without adapters
- Processing multiple SAS drives simultaneously
- Extended warranty coverage desired (2 years)
Choose Ultra When:
- Maximum throughput required (3-to-3 SATA capability)
- Supporting Mac environments (FireWire Target Disk Mode)
- Working with diverse storage formats (U.2/U.3, CF, SD, IDE)
- Need 50% more SATA processing capacity
- Mixed legacy and modern drive environments
- Maximum warranty coverage desired (3 years)
ROI Calculator
Example: IT Department Processing 200 Drives Monthly
| Model | Time per Month | Labor Cost (@$50/HR) | Monthly Savings | Payback Period |
|---|---|---|---|---|
| Manual (single dock): | 108 hours | $5,400 | Baseline | — |
| SS-Mobile Standard: | 54 hours | $2,700 | $2,700 | 2 months |
| SS-Mobile PRO: | 54 hours | $2,700 | $2,700 | 2 months |
| SS-Mobile Ultra: | 36 hours | $1,800 | $3,600 | 2 months |
Investment recovered through labor savings in as little as 2 months. Ultra model's enhanced SATA capability provides maximum ROI.
What's Included
All Models Include:
- SS-Mobile duplicator unit (configured per model)
- Military-grade Pelican protective case with custom foam insert
- Built-in power supply & US power cord
- 4 SAS/SATA power & data cables
- 1 CAT6 network cable
- PCIe adapter kit for M.2 NVMe/SATA, mSATA, mini-PCIe
- Digital user manual
- Lifetime technical support
Model-Specific Additions:
- PRO: SAS software activation, 1-year extended warranty (2 years total)
- Ultra: Everything in PRO plus FireWire activation & cable, extended adapter kit (U.2/U.3, CF/SD readers, eSATA, 2.5/3.5" IDE/ATA), 2 USB to SATA adapters, 2-year extended warranty (3 years total)
Support & Resources
Technical Support
MDS SS-Mobile systems include lifetime support:
- Lifetime phone and email support: Free technical assistance for the life of your product
- Comprehensive documentation: Detailed guides for every feature
- Firmware updates: Field-upgradeable for new drive technologies
- Remote diagnostics: Debug logs for troubleshooting
Transform Your Data Operations
The MDS SS-Mobile Series delivers enterprise-grade duplication and sanitization wherever your work demands. With transfer rates up to 31GB/min, support for virtually every storage interface, and the reliability of write-protected source operations, you're equipped for any data challenge. The Ultra model's enhanced 3-to-3 SATA capability provides 50% more throughput than competing solutions. From IT deployments to forensic investigations, from data center migrations to field service calls, SS-Mobile systems provide the speed, compliance, and portability modern operations require.
Get Started Today
Choose the SS-Mobile configuration that matches your operational needs. Professional performance, portable convenience, lifetime support.
SS-Mobile Series Technical Specifications
| Hardware Specifications | |
|---|---|
| Transfer Speed: | Up to 31GB/min (1.86TB/hour) - SSD, drive-dependent |
| Display: | 7" color touchscreen with capacitive touch and swipe gesture support |
| External Display: | HDMI output for external monitor connection |
| Network Interface: | Gigabit Ethernet (10/100/1000 Mbps), RJ45 DHCP/Static IP support mDNS for automatic discovery |

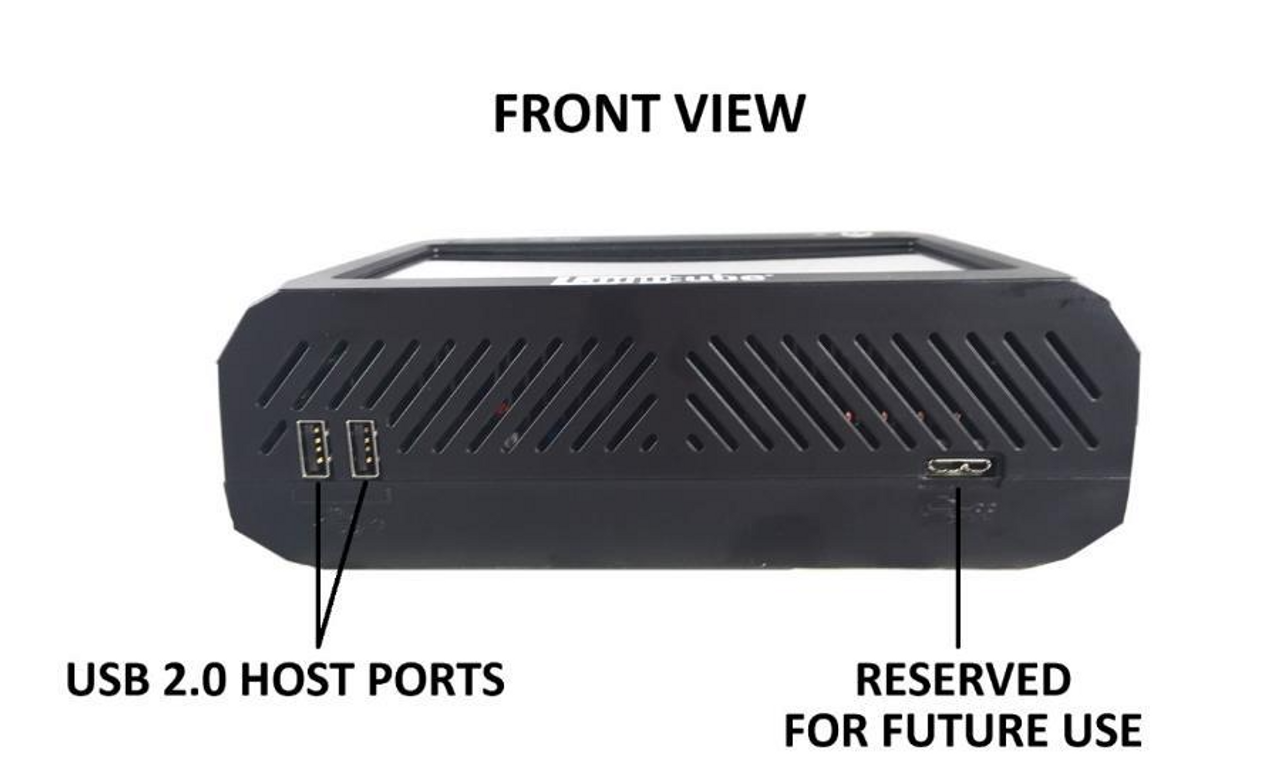

| USB Ports: | 2x USB 2.0 Type-A host ports (front panel) 2x USB 3.0 Type-A ports (1 master, 1 target) |
| Power Supply: | 12V DC, 12.5A (150W) external adapter 100-240V AC input, 50/60Hz Grounded 3-prong connection |
| Dimensions: | Unit: 7.6" x 5.5" x 2.6" (193 x 140 x 66mm) With Pelican case: 16.5" x 13" x 6.9" (419 x 330 x 175mm) |
| Weight: | Unit: 2.0 lbs (0.91 kg) With Pelican case and accessories: 12 lbs (5.4 kg) |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
| Humidity: | 20% to 80% relative humidity (non-condensing) |
| Altitude: | Operating: Up to 10,000 feet (3,048m) Storage: Up to 40,000 feet (12,192m) |
| Compliance: | FCC Part 15 Class A, CE, RoHS, TAA/BAA compliant |
| Performance Specifications | |
|---|---|
| Clone Speed (typical): | PCIe NVMe: Up to 31GB/min SATA SSD: Up to 28GB/min SATA HDD: Up to 6GB/min USB 3.0: Up to 5GB/min |
| Wipe Speed: | Secure Erase: 2-5 seconds (SSD) DoD 7-pass: Drive capacity dependent NIST Purge: 2-5 seconds (SSD with crypto erase) |
| Multi-Session: | Up to 5 concurrent tasks across different interfaces |
| Drive Capacity Support: | No capacity limitations - supports all current and future drive sizes |
| Sector Size Support: | 512 bytes (512n), 512e, 4096 bytes (4Kn) |
| Interface Support by Model | ||
|---|---|---|
| Standard | PRO | Ultra |
| Native Interfaces (built-in ports) | ||
| SATA: 2M, 2T | SATA: 2M, 2T | SATA: 3M, 3T* |
| PCIe: 1M, 1T | PCIe: 1M, 1T | PCIe: 1M, 1T |
| USB 3.0: 1M, 1T | USB 3.0: 1M, 1T | USB 3.0: 1M, 1T |
| — | SAS: 2M, 2T | SAS: 2M, 2T |
| — | — | FireWire: 1M, 1T |
| Adapter-Based Interfaces (included adapters) | ||
| M.2 NVMe: 1M, 1T | M.2 NVMe: 1M, 1T | M.2 NVMe: 1M, 1T |
| M.2 SATA: 1M, 1T | M.2 SATA: 1M, 1T | M.2 SATA: 1M, 1T |
| mSATA: 1M, 1T | mSATA: 1M, 1T | mSATA: 1M, 1T |
| mini-PCIe: 1M, 1T | mini-PCIe: 1M, 1T | mini-PCIe: 1M, 1T |
| — | — | U.2/U.3 NVMe: 1M, 1T |
| — | — | IDE/ATA: 1M, 1T |
| — | — | eSATA: 1M, 1T |
| — | — | CF/SD: 1M, 1T |
| *M = Master (source), T = Target (destination) *Ultra achieves 3M, 3T SATA via included USB-to-SATA adapters |
||
| Software Specifications | |
|---|---|
| Operating Systems: | Windows (all versions), macOS/Mac OS X, Linux (all distributions), Unix, DOS, embedded systems - OS independent operation |
| File Systems: | FAT16/32/64, exFAT, NTFS, EXT2/3/4, HFS/HFS+/HFSX, APFS, ZFS, ReFS, Btrfs - File system independent |
| Partition Schemes: | MBR (Master Boot Record), GPT (GUID Partition Table), APM (Apple Partition Map), UEFI, BIOS |
| Encryption Support: | BitLocker, FileVault, VeraCrypt, hardware-encrypted drives (Mirror mode preserves encryption) |
| Clone Modes: | Mirror (bit-for-bit), Clever Copy (skip blank sectors), Resize (expand to larger target) |
| Wipe Standards: | NIST SP 800-88 R1 (Clear/Purge), DoD 5220.22-M (3-pass, 7-pass), Secure Erase, Custom patterns (up to 7 passes) |
| Hash Algorithms: | SHA-1, SHA-256, MD5 (optional software activation required) |
| Network Protocols: | iSCSI, SMB/CIFS, NFS (optional software activation required) |
| Management Interface: | Web browser (Chrome, Firefox, Edge, Safari), SSH, Telnet |
| User Interface Language: | English |
| Audit/Reporting: | Digital signatures, PDF/HTML/XML export, email notifications, syslog support |
| Included Accessories | |
| All Models Include: |
|
| PRO Adds: |
|
| Ultra Adds: |
|
| Warranty Information | |
| Standard Model: | 1-year manufacturer's limited warranty |
| PRO Model: | 2-year manufacturer's limited warranty |
| Ultra Model: | 3-year manufacturer's limited warranty |
| Technical Support: | Lifetime phone and email support included with all models |
| Important Notes: |
|
Custom Field
Professional Portable Cloning & Data Sanitization System 31GB/min portable powerhouse processes PCIe NVMe, SATA, SAS drives simultaneously. Military-grade Pelican case, 7" touchscreen, NIST/DoD compliant. Clone up to 3-to-3 or wipe 3 drives at once. Lifetime support included.
