NSA-Approved Sub 2mm SSD Disintegrator with Audit & Maintenance Suite
NSA-approved for classified solid-state media destruction. The Kobra SSD disintegrator exceeds NSA/CSS specifications by reducing all solid-state devices to sub-2mm particles while the included Log Management System documents every device destroyed for complete compliance.
Bundle Components

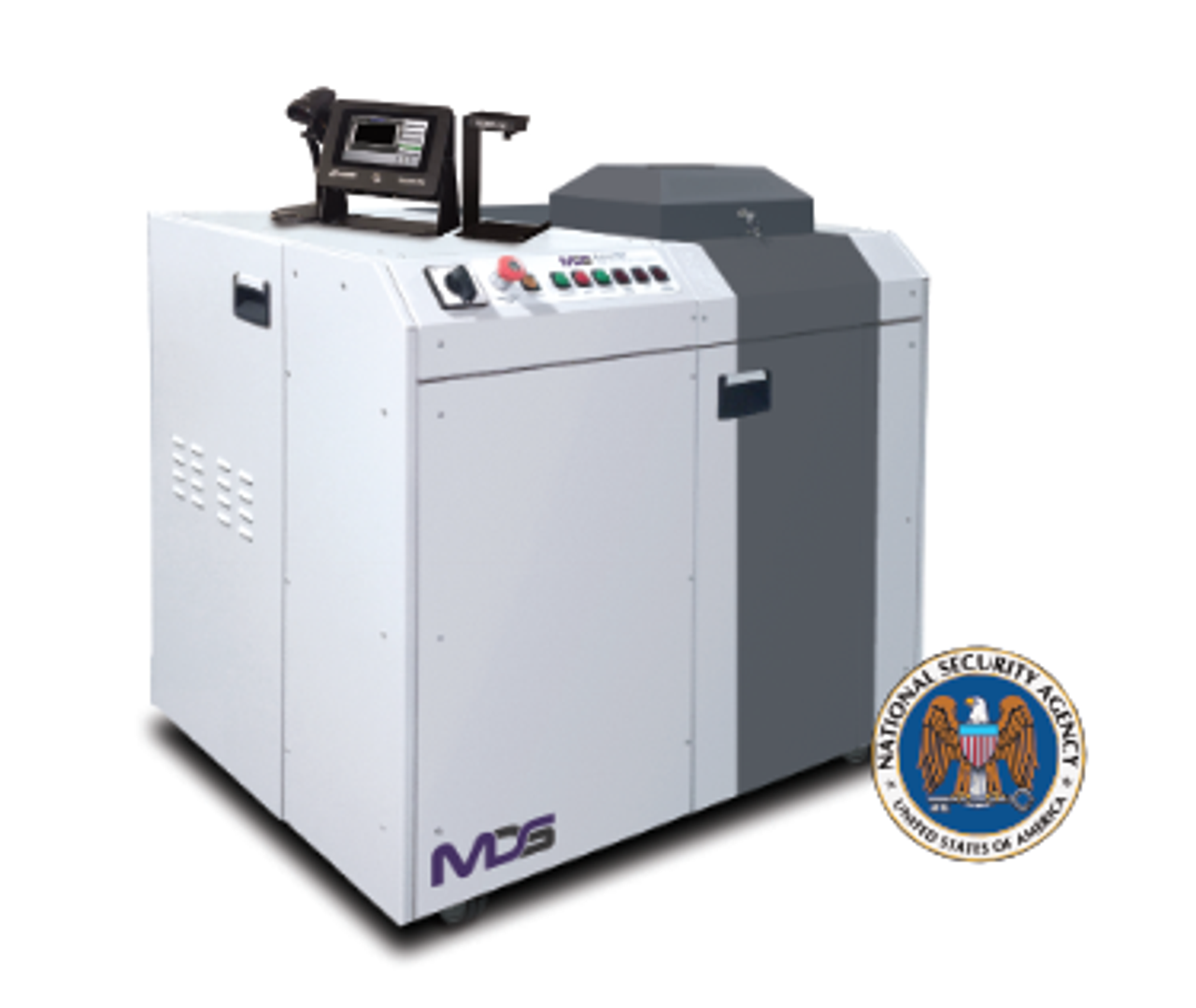

Kobra SSD Disintegrator
NSA-Approved Two-Stage Destruction
- Sub-2mm particle size through 7.5" diameter 16-blade grinding system
- 90 lbs/hour throughput for all solid-state media types
- Processes SSDs, M.2, NVMe, flash drives, phones, tablets, circuit boards
- Electronic monitoring continuously adjusts both stages for reliable operation
- 17" x 17" high-output exit screen for efficient particle collection
Log Management System (LMS)
Complete Audit Trail Documentation
- USB barcode scanner for rapid serial number capture
- Automatic date/time stamping for every destroyed device
- Microsoft Excel integration for familiar data management and export
- PC/MAC compatible via USB connection
- Provides complete chain-of-custody documentation for compliance
Maintenance & Filtration Suite
HEPA System & Operating Supplies
- Integrated HEPA filtration captures harmful IC materials during operation
- 5 air filters and 1 HEPA filter included for initial operation
- 5 heavy-duty disposal bags for secure waste containment
- Emergency stop switch and safety interlocks on all access points
- Hour meter tracks usage for scheduled maintenance intervals
Technical Specifications
| Specification | Details |
|---|---|
| Throat Width | 9.5" x 1" |
| Particle Size | <2mm (sand-like texture) |
| Throughput | Up to 90 lbs/hour* |
| Accepted Media | SSDs, M.2, NVMe, flash drives, memory cards, circuit boards, phones**, tablets** |
| Waste Capacity | 9 gallons |
| Power Requirements | 208V 3-phase, 50 amps per phase |
| Dimensions | 41" x 32" x 48" (WxDxH) |
| Weight | 1,250 lbs |
*Throughput varies based on media type and density
**After removing batteries and prohibited components
Critical Operating Requirements
Device Preparation (MANDATORY)
The following components MUST be removed before processing:
- All batteries (lithium-ion, alkaline, etc.)
- Capacitors and relays
- Heat-sinks and metal covers
- Large LCD displays
WARNING: Failure to remove these components can cause fires, explosions, or toxic fume release.
Electrical Infrastructure
- 208V 3-phase, 50 amps per phase required
- Professional installation by licensed electrician mandatory
- Connection method (hardwired or industrial plug) determined by electrician
- Dedicated circuit required
Important Restrictions
- Cannot process traditional hard drives - HDDs will damage unit and void warranty
- Cannot process rotational media - Magnetic media requires different destruction methods
- Designed exclusively for solid-state storage devices
Compliance & Certifications
- NSA/CSS Specifications for Solid State Devices Destruction
- NIST SP 800-88r1 Guidelines for Media Sanitization
- ISO/IEC 21964 (DIN 66399) Similar to O-7/T-7/E-7
- TAA Compliant for Federal Procurement
- HIPAA Healthcare Information Protection
- GDPR EU Data Protection Requirements
- PCI DSS Payment Card Industry Standards
Why Physical Disintegration is Essential for SSDs
Solid-state drives store data using electrical charges trapped in flash memory cells. Unlike magnetic media, these devices are completely unaffected by degaussing or magnetic fields. Software-based erasure methods cannot guarantee complete data elimination due to wear leveling, bad blocks, and controller-level data management.
The NSA determined through extensive testing that physical particles must be smaller than 2mm to prevent any possibility of data recovery from individual memory chips. The Kobra SSD achieves this through its two-stage destruction process: initial breaking with 16-blade grinders followed by fine disintegration to sand-like particles.
Operational Features
- Automatic reverse mechanism prevents damage during jams
- Lockable feed hopper cover prevents unauthorized access after material insertion
- Heavy-duty lockable double-wheel casters for mobility within facility
- 9.5" x 1" feed port with safety brush covering
- Electronic safety lockout on all access points
- Lighted indicator displays for real-time operating status
- Front-mounted emergency stop switch for immediate shutdown
Warranty & Support
- One-year limited manufacturer warranty on equipment
- Warranty excludes: Cutting blades, filters, screens, bags, and wear parts
- Professional installation coordination included
- Operator training included
- Technical support available
- Extended warranty options available
Total Cost of Ownership
Included at No Additional Cost:
- Log Management System for complete audit trail
- Initial operating supplies (bags, filters)
- Professional training and setup support
Ongoing Operational Costs:
- HEPA filter replacement (annually)
- Air filters (as needed based on volume)
- Disposal bags
- Blade replacement (varies by usage)
- Media preprocessing labor
Frequently Asked Questions
Can this destroy traditional hard drives?
No. The Kobra SSD is specifically designed for solid-state media only. Traditional hard drives require magnetic degaussing and different shredding equipment. Processing HDDs will damage the unit and void the warranty.
What solid-state formats can it handle?
All formats including SATA SSDs, M.2, NVMe, PCIe SSDs, USB flash drives, SD cards, microSD, CompactFlash, eMMC, and embedded flash in phones and tablets (after battery removal).
Why must batteries be removed?
Lithium batteries can explode or catch fire when shredded, creating serious safety hazards and toxic fumes. This is a mandatory safety requirement.
How does the LMS audit trail work?
The included Log Management System uses a USB barcode scanner to capture serial numbers as devices are destroyed. Data is automatically timestamped and exported via Excel for compliance documentation.
What's the actual throughput with preparation time?
The 90 lbs/hour rate is for feeding prepared devices. Factor additional time for removing batteries and prohibited components from phones, tablets, and circuit boards.
Can it run continuously?
Yes, the Kobra SSD is designed for continuous duty operation without required cool-down periods.
Professional installation required. Electrical infrastructure must be verified before ordering. Contact Media Duplication Systems for facility assessment.
| Kobra SSD Solid State Drive High Security Disintegrator | ||||
|---|---|---|---|---|
| Throat Width: | 9.5 x 1 inch | |||
| Shred size: | Sand-like texture particle | |||
|
Security level ISO/IEC 21964 (DIN 66399): |
Similar to O-7 T-7 E-7 Meets NSA/CSS Solid State Disintegrator (SSD) Specifications | |||
| Shreddable materials: | Solid State Drives, Solid State SIM Cards, Flash Drives, Circuit Boards, Enterprise Solid State Drives, Cell Phones, Tablets, USB Pen Drives, USB memory devices, flash memory IC chips, CPU chips with internal ROM and/or flash memory, CD/DVD/Blu-ray disks* | |||
| Waste bin capacity: | 9 gal | |||
| Rated Capacity: | Up to 90lbs/hour* | |||
| Voltage: | 208 Volt / 3 phases 50 amps per phase | |||
| Power: | 7 HP | |||
| Dimensions (WxDxH): | 41 x 32 x 48 inch | |||
| Net weight: | 1250 lbs | |||
Videos Hide Videos Show Videos
Custom Field
- SSD and e-Waste shredder
- Meet NSA/CSS specification
- Exceeds NSA/EPL 9-12 requirements
- Sand-like texture particles (~ E-7)
- Included HEPA air filtration system
- USA Gov TAA/BAA Compliant
