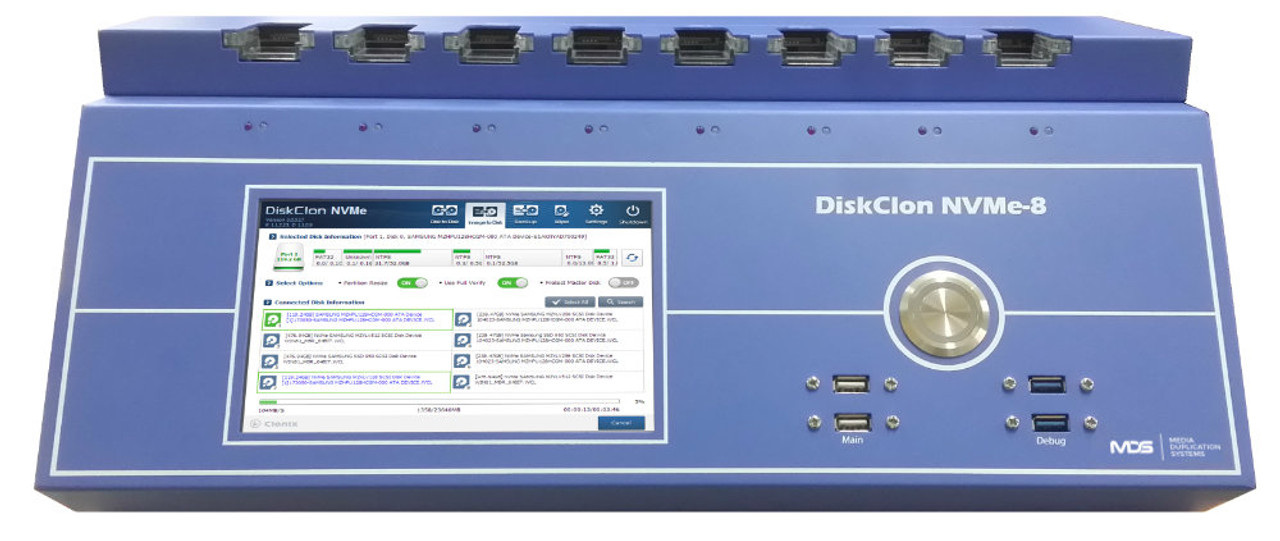

DiskClon NVMe-8 Standalone M.2 NVMe SSD Duplicator and Eraser
Professional 8-Port NVMe SSD Duplication and Sanitization System
The DiskClon NVMe-8 is a high-performance standalone duplicator and eraser specifically designed for NVMe SSDs. This industrial-grade system delivers exceptional duplication speeds of 9-12GB per minute while supporting up to 8 NVMe drives simultaneously, making it the ideal solution for IT departments, data centers, and production environments requiring reliable, high-speed NVMe SSD management.
Why Choose the DiskClon NVMe-8?
Blazing Fast Performance
- 9-12GB/min Transfer Rate: Industry-leading duplication speeds for maximum productivity
- 8 Simultaneous Targets: Process up to 8 NVMe SSDs in parallel without performance degradation
- PCIe 3.0 Interface: 6.4GB/s bandwidth support per port for optimal throughput
- Dedicated Hardware Architecture: Purpose-built system ensures consistent, reliable performance
Enterprise-Grade Security
- Multiple Erase Standards: DoD 5220.22-M, NSA, Peter Gutmann (35-pass) certified erasure
- Wipe Reports: Generate detailed PDF/CSV reports for compliance documentation
- Verification Options: Ensure complete data destruction with multiple verification levels
- Password Protection: Secure access control for settings and configurations
Professional Windows Interface
- 800x600 Color LCD Touchscreen: Intuitive Windows-based GUI eliminates learning curve
- Real-Time Progress Monitoring: Track speed, time remaining, and completion status for each port
- Built-in Storage: 1TB HDD + 64GB SSD for master image storage and management
- Network Integration: Access network drives for centralized image storage
Key Features & Benefits
Advanced Duplication Capabilities
- Direct Disk-to-Disk Cloning: Copy directly from source to multiple targets
- Image-Based Duplication: Create and deploy master images for repeated use
- Smart Copy Technology: Clone only used sectors for faster operation
- Sector-by-Sector Copy: Bit-for-bit identical copies including empty space
- Automatic Partition Resizing: Intelligently adjust partitions when cloning to different sized drives
Comprehensive Data Sanitization
- Single Pass (Quick Erase): Fast removal of data for non-sensitive applications
- DoD 5220.22-M(E): 3-pass military standard erasure
- DoD 5220.22-M(ECE): 7-pass enhanced security erasure
- NSA Erasure: 7-pass National Security Agency standard
- Peter Gutmann: 35-pass maximum security erasure
Enterprise Management Features
- Backup Image Management: Store, organize, and deploy multiple master images
- Network Drive Support: Access centralized storage for image management
- Comprehensive Logging: Export activity logs in multiple formats for compliance
- Batch Operations: Process different images to different targets simultaneously
- Hot-Swappable Design: Connect and disconnect drives during operation
Quality Assurance
- Full Verification Mode: Bit-by-bit comparison after cloning
- AutoVerification and Error Management: Automatic sector repair during verification
- Slow Disk Detection: Identifies and manages underperforming drives
- Master Disk Protection: Prevents accidental erasure of source drives
- Align Hard Disk Function: Ensures proper port configuration
Technical Specifications
Hardware Specifications
| Feature | Specification |
|---|---|

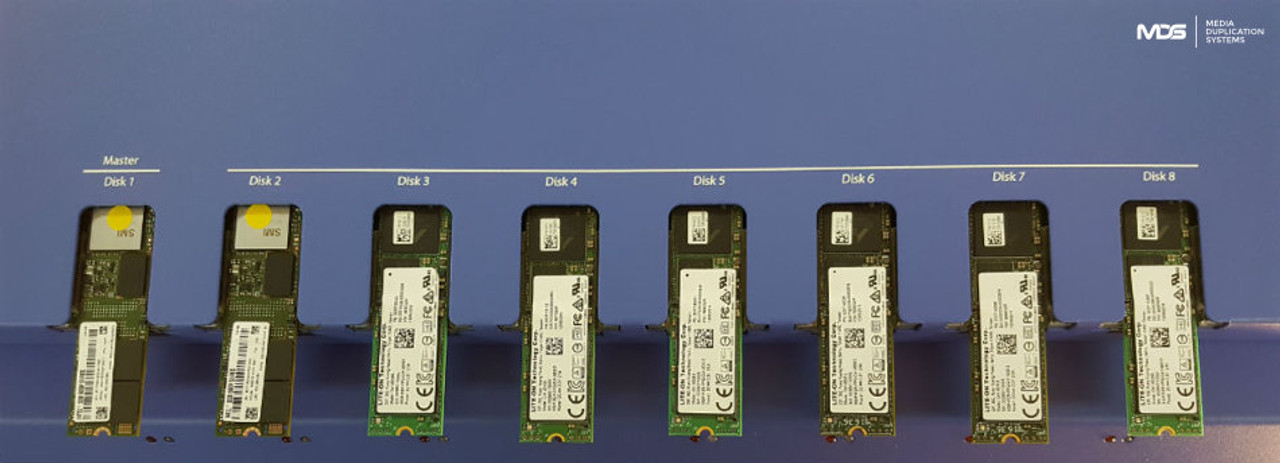

| Number of Ports | 8 x NVMe SSD slots |
| Display | 800 x 600 color LCD touchscreen |
| Built-in Storage | 1TB HDD + 64GB SSD for image storage |
| Power Supply | 700W, Full Range (100-240V) |
| Dimensions | 454 x 440 x 190mm |
| Weight | 13.1kg |
| USB Ports | 2 x USB 2.0, 2 x USB 3.0 |
| Network | 1 x Gigabit Ethernet (1000BASE-T) |
| Serial Port | 1 x Serial port |
Performance & Compatibility
| Feature | Specification |
|---|---|
| Transfer Speed | 9-12GB per minute average throughput |
| Interface Support | PCIe 3.0, NVMe 1.0/1.1 |
| Operating Systems | Windows 8.1, Windows 10, sector copy for all systems |
| File Systems | FAT16, FAT32, NTFS |
| Cloning Methods | Sector Copy, Smart Copy (used sectors only) |
| Language Support | English interface |
| Password Protection | Secure access control |
Performance Metrics
Time to Duplicate 500GB NVMe SSD
| Operation Mode | To 1 Target | To 8 Targets | Throughput |
|---|---|---|---|
| Smart Copy (50% full) | ~3 minutes | ~3 minutes | 10GB/min |
| Sector-by-Sector | ~6 minutes | ~6 minutes | 9GB/min |
*Actual speeds depend on source/target drive capabilities and data density
Use Cases & Applications
Production Environments
- PC & Server Manufacturing: Deploy OS images to multiple systems simultaneously
- Embedded Systems: Quick provisioning of specialized firmware and software
- Quality Control: Verify every drive with bit-by-bit comparison
- Production Line Integration: Windows interface enables easy operator training
IT Departments
- System Deployment: Roll out standardized configurations across organizations
- Hardware Refresh: Migrate data to new NVMe drives quickly and reliably
- Backup Solutions: Create multiple copies of critical systems
- Disaster Recovery: Rapid restoration of system images
Data Centers
- Mass Storage Provisioning: Configure multiple drives for storage arrays
- Secure Decommissioning: Military-grade erasure with certified reports
- Performance Testing: Clone reference drives for benchmarking
- Compliance Management: Generate audit-ready documentation
Government & Military
- Secure Data Sanitization: DoD and NSA compliant erasure methods
- Classified System Management: Password-protected operations
- Evidence Preservation: Bit-for-bit forensic duplication
- Certified Documentation: Compliance-ready reports for auditing
Advanced Features Deep Dive
Intelligent Cloning Options
The DiskClon NVMe-8 employs sophisticated algorithms to optimize every duplication:
- Size Mismatch Handling: Automatically manages cloning between different capacity drives
- Partition Resize Options: Choose to resize last partition only or maintain original structure
- Selective Port Operation: Enable or disable specific ports for targeted operations
- Multi-Image Deployment: Clone different images to individual ports simultaneously
Windows-Based Interface Advantages
The familiar Windows environment provides unmatched ease of use:
- No Learning Curve: Standard Windows navigation and controls
- Drag-and-Drop Operations: Simple image management
- File Explorer Integration: Browse and manage images like regular files
Security & Compliance Features
- Secure Erase Protocols: Multiple military-grade sanitization options
- Audit Trail: Complete operation history with timestamps
- Report Generation: PDF and CSV formats for different compliance needs
- Access Control: Password-protected settings prevent unauthorized changes
- Master Protection: Hardware and software safeguards prevent source erasure
ROI Analysis
Example: Duplicating 100 x 1TB NVMe Drives
| Method | Time per Drive | Total Time | Labor Cost (@$30/hr) |
|---|---|---|---|
| Single Drive Cloning | 12 minutes | 20 hours | $600 |
| DiskClon NVMe-8 | 1.5 minutes (8 at once) | 2.5 hours | $75 |
| Savings | 87.5% reduction | 17.5 hours saved | $525 saved |
*ROI achieved in approximately 15-20 duplication projects
What's Included
- DiskClon NVMe-8 Main Unit
- Power Cable
- User Manual
- Warranty Certificate
- Quick Start Guide
Support & Resources
Technical Support
The DiskClon NVMe-8's Windows-based interface is so intuitive that most users never need support, but we're here when you need us:
- Comprehensive documentation - Detailed user manual covers all operations
- Phone and email support - Expert assistance available
- Software updates - Field-upgradeable firmware via USB
- Recovery mode - Built-in system restoration capabilities
Why Support Calls Are Rare
The Windows-based design means immediate productivity:
- Familiar interface - If you can use Windows, you can use DiskClon
- 800x600 touchscreen - Clear, responsive control panel
- Logical workflow - Operations organized intuitively
- Visual feedback - Real-time progress for every operation
- Built-in help - Context-sensitive assistance when needed
Get Started Today
Transform your NVMe SSD duplication and data sanitization workflow with the DiskClon NVMe-8. Experience the power of Windows-based control with enterprise-grade performance.
Frequently Asked Questions
Getting Started & Compatibility
What M.2 form factors and drive types are supported?
The DiskClon NVMe-8 supports M.2 NVMe SSDs in 2242, 2260, 2280, and 22110 form factors. Compatible with both PCIe Gen 3 and Gen 4 drives. The tool features design accommodates both single-sided and double-sided M.2 drives. Western Digital, Intel, Crucial, and Samsung NVMe drives work perfectly.
Can I really deploy different operating systems simultaneously?
Yes! The sequential multi-image processing allows you to deploy Windows 10, Windows 11, various Linux distributions, and custom enterprise images to 8 drives simultaneously. Each drive gets its own automated workflow. This is the key differentiator from standard duplicators like the XpressNVMe series.
How does this compare to the XpressNVMe series?
The DiskClon NVMe-8 offers superior features including Windows-based interface (vs proprietary OS), 1TB internal storage for multiple images (vs none), full network capabilities, and professional PDF/CSV reporting. While XpressNVMe offers various port counts (6-21), the DiskClon's advanced features provide better value for most professional environments.
Is it approved for government use?
Yes, the DiskClon NVMe-8 is TAA (Trade Agreements Act) compliant for U.S. government procurement and includes NIST SP 800-88r1 certified secure erase capabilities to meet government and military data sanitization requirements.
Performance & Speed Questions
What are the actual cloning speeds I can expect?
The DiskClon NVMe-8 delivers true real-world performance. Disk-to-disk cloning reaches up to 12 GB/min total throughput, while multi-image deployment averages 9-10 GB/min based on drive quality. M.2 enclosure configurations maintain 9-11 thermal conditions. Network speeds may be higher but stabilize due to NVMe drive cache and buffer limitations.
How does heating affect performance?
The unit includes dual cooling fans and is designed for continuous operation. During extended secure erase sessions, some heating is normal. If operating in environments above 30°C, consider additional external cooling to maintain peak performance. The 700W power supply includes thermal protection.
Does it really operate without a PC?
Completely standalone operation via the 800 x 600 color LCD touchscreen. No host computer required for cloning, imaging, secure erase, file management, or logging operations. Optional network connectivity available for centralized image storage.
| Model Name | DiskClon NVMe-8 | |
|---|---|---|
| Specification | Port No. | 8 |
| Operating System | Windows Embedded | |
| Support Media | M.2 NVMe SSD, M.2 PCIe SSD (2242, 2260, 2280, 22110) | |
| Target Interface | PCIe 3.0/Gen 4 NVMe 1.0/1.1/1.2 | |
| Support File System | NTFS, FAT16/32, Ext2/3/4, ReiserFS, XFS | |
| Internal Storage | 1 TB HDD + 64 GB SSD (upgradeable) | |
| Interface | Display | 800 × 600 Color LCD touchscreen |
| Monitoring | Real-time display with per-port status | |
| Button | Full touchscreen / One Play button | |
| LED Indicators | Yellow (Power), Green (Pass), Red (Fail) per port | |
| Keyboard (USB) | Supported | |
| Mouse (USB) | Supported | |
| Additional Ports | USB 2.0 ×2, USB 3.0 ×2, Serial ×1, LAN (RJ-45) ×1 | |
| Clone | Disk to Disk | 1:7 (1 source + 7 targets) |
| Clone Speed | Disk-to-disk: Up to 32 GB/min - Multi-Image: 9-12 GB/min | |
| Image Backup | Supported | |
| Image to Disk | 1:8 (deploy Images to all 8 ports) | |
| Verification | Sector by sector with integrity checking | |
| Copy Modes | System & Files, Whole Drive, Percentage Copy, Smart Copy | |
| Multi-Image Processing | Up to 4 different images simultaneously (sequential processing) | |
| Port Assignment | Flexible 1-7 ports per image | |
| Wipe | Type |
Single Pass U.S. DoD 5220.22-M(E) – 3 Pass U.S. DoD 5220.22-M(ECE) – 7 Pass U.S. NSA Erasure – 7 Pass Peter Gutmann – 35 Pass NIST SP 800-88r1 Purge Secure Erase/Enhanced Secure Erase |
| Verification | Full support with audit trail generation | |
| Report | Supported with exportable certificates | |
| Functions |
|
|
| Environmental | Operating Temperature | <40°C internal temperature |
| Cooling | Dual Cooling fans with thermal management | |
| Power Supply | 700W / Full Range (100–240 V, 50/60 Hz) | |
| Dimensions | 454 x 440 x 190 mm | |
| Weight | 131.1 kg (28.9 lbs) | |
| Compliance & Certifications | Certification | FCC, CE, RoHS, TAA Compliant |
| Government Approval | TAA (Trade Agreements Act) compliant for US gov procurement | |
| Data Security Standards | DoD 5220.22-M, NIST SP 800-88r1, NSA approved methods | |
| Quality Standards | ISO 9001:2015 certified manufacturing | |
| Warranty | 12 - month limited warranty + lifetime firmware updates | |
| Support | 90 days phone/email support + remote training included | |
Custom Field
• Up to 8 Target Ports
• Smart & Full Disk Copy Modes
• NIST, DoD 5220.22-M, NSA Wipe
• Store Images In Device or On Network
• USA Gov TAA Compliant
