XpressNVMe 1:16 M.2 NVMe/SATA, U.2/U.3, SATA SSD Duplicator & Eraser
Enterprise-Grade Production Power for Large-Scale IT Operations
The XpressNVMe 1:16 provides large-scale duplication capacity that one operator can effectively manage. With 16 simultaneous targets, IT departments complete major deployments within single shifts, production facilities maintain continuous output without bottlenecks, and service centers process high-volume contracts on schedule. Organizations specifically choose the 1:16 because it delivers maximum throughput while remaining simple to operate - critical when deployment windows are fixed and delays cost thousands per hour. Available in both Standard (400MB/sec per port) and PRO (1,000MB/sec per port) models, the PRO configuration achieves up to 16GB per second aggregate throughput across all ports when using high-speed NVMe drives. This means copying 8TB of total data (500GB to 16 drives) can complete in under 10 minutes with capable Gen4/Gen5 drives, turning what were once overnight operations into lunch-break tasks.
Performance Tiers
Standard Model
- 400MB/sec Transfer Rate: perfect for Gen3/Gen4 NVMe drives
- Process entire department inventories in single shifts
- Professional throughput at measured investment levels
- Ideal for: Large IT departments, educational institutions, government agencies
PRO Models
- 1,000 MB/sec per port for maximum Gen4/Gen5 drives
- Up to 16GB/sec aggregate throughput with high-speed drives
- Complete urgent deployments in minimal time windows
- Ideal for: Production lines, time-critical operations, high-volume service centers
Why Choose The XpressNVMe 1:16?
Production-Scaled Capacity
- 16 simultaneous targets: Process entire deployments without multiple cycles
- Single-operator efficiency: One technician manages all operations effectively
- 45% more capacity than 1:11: Eliminate deployment bottlenecks
- Industrial construction: Built for continuous daily production
Enterprise Compliance Standards
- NIST SP 800-88r1 Compliant: Meet federal data security requirements
- DoD 5220.22-M Certified: Military-grade sanitization with verification
- Comprehensive logging: Automated compliance documentation
- Chain of custody: Complete tracking for sensitive operations
Workflow Intelligence That Saves Hours
- Copy + Compare: Verify all 16 targets simultaneously
- Internal SSD Storage: Deploy images without handling source drives
- Intelligent copy modes: Skip empty space for faster completion
- Hot-swap capability: Replace drives without stopping operations
Source → Target Cross-Copy Matrix
- ✓Native same-interface
- ✓¹Cross-protocol (NVMe ↔ SATA)
- △Requires swappable socket/adapter
- ✕Not supported
Legend
- ✓Native
- ✓¹Cross-protocol
- △Socket/adapter
- ✕Not supported
| Target / Destination | |||||||
|---|---|---|---|---|---|---|---|
| Interface / Protocol | M.2 NVMe | U.2 / U.3 NVMe | M.2 SATA (AHCI) | 2.5" SATA SSD/HDD | 3.5" SATA (bench-top, cabled) | mSATA | |
| Source Interface | M.2 NVMe | ✓ | ✓ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ |
| U.2 / U.3 NVMe | ✓ △ | ✓ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ | |
| M.2 SATA (AHCI) | ✓¹ △ | ✓¹ △ | ✓ | ✓ △ | ✓ △ | ✓ △ | |
| 2.5" SATA | ✓¹ △ | ✓¹ △ | ✓ △ | ✓ △ | ✓ △ | ✓ △ | |
| 3.5" SATA (bench-top, cabled) | ✓¹ △ | ✓¹ △ | ✓ △ | ✓ △ | ✓ △ | ✓ △ | |
| mSATA | ✓¹ △ | ✓¹ △ | ✓ △ | ✓ △ | ✓ △ | ✓ △ | |
Footnotes & setup
- ✓¹ Cross-protocol (NVMe ↔ SATA) works two ways:
-
- Staged image: Capture the source to the internal 2.5" SATA Image Drive, then deploy that image to all top ports (including the original source port after swapping its socket).
- Mixed-ports in one job: Port 1 NVMe source; remaining ports fitted with U.2/U.3/SATA sockets as targets.
-
- 3.5" SATA (bench-top, cabled): Bare internal 3.5" SATA HDD using the optional 3.5" SATA power/data cable set (one set per drive); place beside the unit on an anti-static mat.
- △ = swappable socket/adapter required when the interface isn't native to that port.
- USB is for firmware/utility only not a cloning target.
Key Features & Capabilities
Performance That Multiplies
- Dual Speed Options: Choose between 400MB/sec (Standard) or 1,000MB/sec (PRO)
- 16 Concurrent Operations: Process entire inventories simultaneously
- High-Speed PCIe Interface: Full bandwidth to all ports (Gen3/Gen4/Gen5 compatible)
- Intelligent Clone Modes: System & Files mode saves hours on partial drives
Flexible Copy Modes
- System and Files: Intelligent copying recognizes file systems and skips empty space
- All Partitions: Copies all defined partitions while excluding unallocated space
- Whole Device: Bit-for-bit sector copying for complete drive cloning
- Custom Data Copy: Advanced mode for special formats and optimized deployment
- Percentage Copy: Define specific capacity ranges for partial cloning
Advanced Image Management
- Internal SSD Support: Store complete deployment library on board
- Source Image Format: Proprietary compression for maximum storage efficiency
- Windows PC Software: Create and manage images from your workstation
- Rapid Deployment: Switch between images without power cycling
Management Capabilities
- Firmware Loading: Deploy firmware to new M.2 devices (supports .std, .enc, .flu, .bin, .sig, .rel, .bet formats)
- Log Report Management: Records all task details with exportable audit trails for production tracking
- Hot-Swap Operation: Cable-free M.2 connections allow drive changes without power cycling
- Multi-Format Socket Support: Swappable sockets for M.2, U.2/U.3, and SATA configurations
Comprehensive Data Verification
- Parallel Compare: Verify all 16 targets simultaneously
- CRC64 Calculation: Generate checksums for source validation
- Bad Sector Management: Continue operations on good drives when failures occur
- S.M.A.R.T. Monitoring: Track health across all connected drives
- Device Compatibility: Supports M key and B+M key for all M.2 PCIe and M.2 SATA devices
- 4Kn Support: Compatible with SATA I/II/III and 4Kn advanced format drives
Technical Specifications
Hardware Specifications
| Feature | Standard Model | Pro Model |
|---|---|---|
| Model: | XpressNVMe 1:16 Standard | XpressNVMe 1:16 Pro |
| Transfer Speed: | 400MB/sec | 1,000MB/sec |
| Aggregate Throughput: | Up to 6.4GB/sec | Up to 16GB/sec |
| Supported Interfaces: | M.2 NVMe (PCIe), M.2 SATA, U.2/U.3 (with swappable socket), SATA/mSATA | |
| Number of Targets: | 15 (16 from internal image) | 15 (16 from internal image) |
| Form Factors: | M.2 2230, 2242, 2260, 2280 | |
| Display: | LCD with multi-language support | |
| Control Interface: | 4-button navigation panel | |
| Data Ports: | USB 3.0 for Windows PC and firmware updates | |
| Power Supply: | Industrial-grade with surge protection | |
| Dimensions: | 19.2" x 17.5" x 15.8" | |
| Weight: | 35.6 lbs | |
| Cooling: | Multi-fan system for continuous operation | |
| Certifications: | FCC, CE, RoHS, TAA/BAA Compliant | |
Main Features and Functions
| Feature | Description |
|---|---|
| Cloning Modes: | 5 intelligent copy modes (Quick Smart, All Partitions, Whole, Percentage, Custom) |
| Erase Standards: | NIST SP 800-88, DoD 5220.22-M |
| File Systems: | FAT16/32/64/exFAT, NTFS, EXT2/3/4, HFS/HFS+/HFSX |
| Image Support: | Proprietary format with compression |
| Log Management: | Exportable CSV and text formats |
| Language Support: | English, Japanese, Spanish |
| Password Protection: | Multi-level access control |
Performance Comparison
Time to Process 160 x 500GB NVMe SSD (50% full)
| Method | Time Required | Labor Cost (@$50/HR) | Time Saved |
|---|---|---|---|
| XpressNVMe 1:11: | 4.4 hours | $220 | Baseline |
| 1:16 Standard: | 3 hours | $150 | 1.4 hours |
| 1:16 Pro: | 1.2 hours | $60 | 3.2 hours |
*Actual speeds depend on source/target drive capabilities and data density
XpressNVMe Series Comparison
Find the perfect model for your needs
| Feature | XpressNVMe 1:6 | XpressNVMe 1:11 | XpressNVMe 1:16 | XpressNVMe 1:21 |
|---|---|---|---|---|
| Target Ports: | 6 | 11 | 16 | 21 |
| Standard Speed: | 400MB/sec | 400MB/sec | 400MB/sec | 400MB/sec |
| Pro Speed: | 1,000MB/sec | 1,000MB/sec | 1,000MB/sec | 1,000MB/sec |
| NVMe Support: | ✓ | ✓ | ✓ | ✓ |
| SATA Support: | ✓ | ✓ | ✓ | ✓ |
| Image Management: | ✓ | ✓ | ✓ | ✓ |
| NIST Compliant: | ✓ | ✓ | ✓ | ✓ |
| DoD Certified: | ✓ | ✓ | ✓ | ✓ |
| Swappable Sockets: | ✓ | ✓ | ✓ | ✓ |
| PC Software: | ✓ | ✓ | ✓ | ✓ |
| Audit Logging: | ✓ | ✓ | ✓ | ✓ |
| Best For: | Small IT shops, Field service; | Medium deployments, Service centers | Large IT departments, Production lines | Data centers, High volume operations |
Use Cases & Applications
Large Enterprise IT Departments
- Floor-Wide Deployments: Update 500+ workstations in coordinated rollouts
- Weekend Transformations: Complete infrastructure refreshes within maintenance windows
- Multi-Site Standardization: Prepare identical configurations for all locations
- Emergency Response: Deploy replacement systems after security incidents
Manufacturing & Production Lines
- Line-Speed Matching: Keep pace with assembly throughput requirements
- Quality Assurance: Verify every drive before shipment
- Just-In-Time Production: Prepare drives exactly when needed
- Shift Completion: Meet daily quotas within single shifts
Educational Institutions
- Campus Updates: Refresh multiple buildings systematically
- Lab Management: Deploy specialized configurations to computing clusters
- Semester Transitions: Reset student machines between terms
- Research Support: Prepare drives for computational projects
Government & Healthcare
- Compliance Operations: Meet strict data handling requirements
- Secure Transitions: Sanitize drives with certified documentation
- Department Rollouts: Deploy approved configurations agency-wide
- Audit-Ready Processing: Generate complete compliance trails
Operational Intelligence for Production Environments
Continuous Operation Across All Ports
The XpressNVMe 1:16 maintains maximum throughput even when individual drives fail:
- Parallel Processing: All 16 ports operate independently at full speed
- Failure Isolation: Bad drives don't affect other operations
- Smart Resource Allocation: Optimal bandwidth distribution
- Cross-Platform Support: Handle mixed drive types in single batch
Secure Erase at Scale
Process entire batches through certified sanitization:
- Quick Erase: Clear partition tables on 16 drives simultaneously
- NIST Clear: Overwrites all sectors meeting federal standards
- DoD 3-Pass: Military-grade overwrite with pattern berification
- Secure Erase: Trigger firmware-level sanitization on all drives
- Batch Compliance: Generate certificates for entire operations
Real-Time Control and Monitoring
- LED Status Matrix: Instantly identify successful and failed operations
- Selective Port Enable: Run partial batches when needed
- Hot-Swap Support: Replace completed drives without stopping
- Progress Monitoring: Track individual port status and speeds
- Batch Statistics: View aggregate performance metrics
Model Selection Guide
Why Choose the 1:11 Over Other XpressNVMe Models?
The Production Threshold At 16 ports, organizations gain enough throughput to justify dedicated operators while maintaining single-person manageability. This capacity handles most large deployments in single passes, eliminating the multi-cycle inefficiency of smaller systems without requiring the infrastructure investment of data center equipment.
Perfect for Organizations That:
- Process 400-800 drives monthly
- Need single-shift deployment completion
- Require certified data sanitization at scale
- Have dedicated duplication operators
- Face strict deployment windows
Choose Standard (400MB/sec) When:
- Working with mixed drive generations
- Budget optimization is priority
- Standard deployment windows suffice
- SATA and Gen3 drives are common
Choose PRO (1,000MB/sec) When:
- Gen4/Gen5 drives dominate inventory
- Time directly impacts costs
- Production lines set the pace
- Service contracts demand speed
ROI Calculator
Example: Large IT Department Processing 800 Drives Monthly
| Model | Time per Month | Labor Cost (@$50/HR) | Monthly Savings | Payback Period |
|---|---|---|---|---|
| Two 1:11 units: | 22 hours | $1,100 | Baseline | - |
| 1:16 Standard: | 15 hours | $750 | $350 | 8-10 months |
| 1:16 PRO: | 6 hours | $300 | $800 | 4-5 months |
PRO model investment recovered through labor savings alone
What's Included
- XpressNVMe 1:16 Duplicator (Standard or PRO model)
- Power Cable
- USB Cable for Linking to Windows PC
- Quick Start Guide
- Windows PC Software (image creation and management)
- User Manual (Digital)
- 1-Year Warranty Standard on Base Unit
Optional Accessories
- Internal 2.5" SSD Drive: Add image storage capability for master image deployment
- U.2/U.3 Socket Kit: Convert ports for U.2/U.3, 2.5" SATA SSDs or 3.5" SATA with optional Cable
- Extended Warranty: Protect your investment beyond standard coverage
- On-Site training: Professional Installation and workflow optimization
Support & Resources
Technical Support
Our XpressNVMe systems are designed for intuitive operation, but expert support is always available:
- Lifetime phone and email support: Free technical assistance for the life of your product
- Comprehensive documentation: Detailed guides for every feature
- Firmware updates included: Stay current with latest enhancements
Why Support Calls Are Rare
The XpressNVMe's thoughtful design ensures immediate productivity:
- Intuitive 4-button interface: Simple navigation through all functions
- Clear LCD prompts: System guides you through each operation
- Logical menu structure: Find every feature where you expect it
- Professional simplicity: Complex capabilities, simple operation
Transform Your Production Capability
The XpressNVMe 1:16 delivers the capacity and reliability that large-scale operations demand. When deployment windows are measured in hours, when compliance is non-negotiable, and when throughput directly impacts your operation's success, the 1:16 provides the production power to meet every challenge. With up to 16GB per second aggregate throughput on PRO models, you're equipped to handle today's demands while being ready for tomorrow's drive technologies.
Get Started Today
Transform your SSD duplication and data sanitization workflow with the XpressNVMe 1:16. Choose the model that fits your performance needs and budget.
Frequently Asked Questions – XpressNVMe 1:16
Performance & Speed
What does “up to 16GB per second aggregate throughput” actually mean?
On the PRO model, each of the 16 ports can run up to 1,000 MB/sec simultaneously with high-speed Gen4/Gen5 NVMe drives. That’s 16 ports × 1,000 MB/sec = 16,000 MB/sec (16 GB/sec) total system throughput. Actual speeds depend on the target drives’ sustained capabilities.
How much faster is the PRO model compared to Standard?
PRO operates at 1,000 MB/sec per port versus 400 MB/sec for Standard—about 2.5× faster. A typical 500 GB deployment to 16 targets completes in ~8–10 minutes on PRO vs. ~20–25 minutes on Standard.
Will I achieve maximum speeds with my existing drives?
Maximum rates require Gen4/Gen5 NVMe drives that can sustain those transfers. Gen3 NVMe or SATA SSDs will work, but at their own limits (most SATA SSDs peak around ~550 MB/sec).
Operation & Workflow
Can one person really operate all 16 ports effectively?
Yes. LED indicators show per-port status, cable-free M.2 connections speed swaps, and the menu controls the full batch from a single panel. In practice, 16 ports is about the most one operator can efficiently manage.
What happens if one drive fails during a batch?
The other 15 ports continue. The failed port shows a red LED for quick ID, and you can hot-swap the drive with a good one to resume.
How long does it take to switch between different images?
About 10–15 seconds using the menu. No power-cycle or reload required—select the image and start the next batch.
Compatibility & Formats
Does the 1:16 work with both NVMe and SATA drives?
Yes. The swappable socket system lets you switch in ~5 minutes between M.2 NVMe, M.2 SATA, U.2/U.3 enterprise drives, or 2.5" SATA.
Can I mix different capacity drives in the same batch?
Yes, provided each target is equal to or larger than the source image. All targets receive the same image regardless of capacity.
What file systems are supported?
- Windows: FAT16/32/64/exFAT, NTFS
- Linux: EXT2/3/4
- Mac: HFS/HFS+/HFSX
Unknown or proprietary formats can be duplicated using Whole Device (bit-by-bit) mode.
Investment & ROI
How do I justify the 1:16 over a smaller model?
If you process >400 drives/month, labor savings typically repay the 1:16 in 6–12 months. Calculate current duplication time × hourly labor cost and compare to the reduced cycle time with 16 ports.

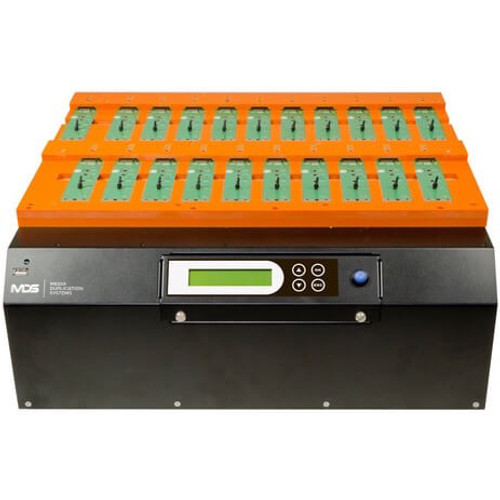

Why choose the 1:16 instead of the 1:21?
The 1:16 balances high throughput with one-operator manageability. The 1:21 is ideal for data centers pushing 1,000+ drives/month where the added ports offset extra complexity and cost.
Should we buy Standard or PRO?
- PRO: Primarily Gen4/Gen5 NVMe, strict SLAs, or time-based billing.
- Standard: Mixed generations, flexible deadlines, or budget-optimized rollout.
Setup & Support
What infrastructure do we need?
- Standard electrical outlet (industrial-grade PSU included)
- Sturdy work surface supporting ~42 lbs
- Adequate ventilation for continuous operation
No special power circuits or facility cooling are required.
Is training included?
The 4-button interface is designed for immediate productivity. Lifetime phone/email support is included; on-site training is optional for workflow optimization.
How reliable are these units?
Built for continuous production with industrial components, multi-fan cooling, and surge protection. 1-year warranty covers defects; most units run for years with routine cleaning.
Data Security
Are the erasure modes really compliant with government standards?
Yes. NIST SP 800-88r1 Clear and Purge modes meet federal guidance, and DoD 5220.22-M performs verified three-pass overwrites. When supported, the system invokes firmware-level secure erase on the drives.
Can we generate audit reports for compliance?
Yes. The log manager records every operation with drive serials, timestamps, and results. Export CSV files for audit trails, billing, or compliance documentation.
Technical Specifications
| XpressNVMe PCIe M.2 NVMe Duplicator and Eraser Specifications | |
|---|---|
| Model: | XpressNVMe-T16 PCIEStandard and PRO Model |
| Targets: | 15 (16 from image source) |
| Specification: | |
| Maximum Transfer Speed: | 400MB/second (Standard Model) 1,000 MB/sec (PRO Model) Note: actual performance is dependent on HDD transfer speeds* |
| Capacity: | Supports the latest sized devices available on the market. |
| Operating Type: | Stand-alone, FPGA-based operation (Non PC-based) |
| Supported Languages: | English, Japanese |
| LCD Display: | Backlit Monochrome LCD Display |
| LEDs: | 3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail) |
| Control Panel: | 4 Push Buttons (▲, ▼, OK, ESC) |
| Features: | |
| Copy Modes: | Quick Copy (Systems & Files Copy), All Partition Copy, Whole Device Copy, Percentage Copy |
| Compare Function: | Bit-by-bit data comparison |
| Sanitization Modes: | Quick Erase, Full Erase, DoD Erase, Secure Erase, and more. |
| Special Features: | |
| Log Report Management: | Records all task details in the log report management system for enhanced production management. |
| PC Monitoring: | Real-Time status monitoring through PC |
| Compatibilities | |
| Compatible Devices: | NGFF (M.2): 2230, 2242, 2260, 2280,22110, PCI-e SSD (Full and low profiles) |
| Compatible Devices (with required adapter): | SATA HDD/SSD, U.2(SFF8639) |
| Supported Formats: | Quick Copy: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+,HFSX) Whole Device Copy: All Formats, including proprietary formats |
| Supported O/S: | All (Windows, Mac, Linux, and other stand-alone systems) |
| Hardware specifications: | |
| Power Supply: | Universal Power: 115VAC or 230 VAC, 50/60Hz |
| Working Temperature: | 5°C ~ 45°C (41°F ~ 113°F) |
| Storage Temperature: | -20°C ~ 85°C (-4°F ~ 185°F) |
| Working Humidity: | 20% ~ 80% |
| Storage Humidity: | 5% ~ 95% |
| Product Dimensions: | 24.5 in. x 23 in. x 13 in. |
| Weight (lbs) | 49.5 lbs. |
| Certifications: | FCC, CE, RoHS, TAA/BAA Compliant |
Source → Target Cross-Copy Matrix
- ✓Native same-interface
- ✓¹Cross-protocol (NVMe ↔ SATA)
- △Requires swappable socket/adapter
- ✕Not supported
Legend
- ✓Native
- ✓¹Cross-protocol
- △Socket/adapter
- ✕Not supported
| Target / Destination | |||||||
|---|---|---|---|---|---|---|---|
| Interface / Protocol | M.2 NVMe | U.2 / U.3 NVMe | M.2 SATA (AHCI) | 2.5" SATA SSD/HDD | 3.5" SATA (bench-top, cabled) | mSATA | |
| Source Interface | M.2 NVMe | ✓ | ✓ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ |
| U.2 / U.3 NVMe | ✓ △ | ✓ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ | ✓¹ △ | |
| M.2 SATA (AHCI) | ✓¹ △ | ✓¹ △ | ✓ | ✓ △ | ✓ △ | ✓ △ | |
| 2.5" SATA | ✓¹ △ | ✓¹ △ | ✓ △ | ✓ △ | ✓ △ | ✓ △ | |
| 3.5" SATA (bench-top, cabled) | ✓¹ △ | ✓¹ △ | ✓ △ | ✓ △ | ✓ △ | ✓ △ | |
| mSATA | ✓¹ △ | ✓¹ △ | ✓ △ | ✓ △ | ✓ △ | ✓ △ | |
Footnotes & setup
- ✓¹ Cross-protocol (NVMe ↔ SATA) works two ways:
-
- Staged image: Capture the source to the internal 2.5" SATA Image Drive, then deploy that image to all top ports (including the original source port after swapping its socket).
- Mixed-ports in one job: Port 1 NVMe source; remaining ports fitted with U.2/U.3/SATA sockets as targets.
-
- 3.5" SATA (bench-top, cabled): Bare internal 3.5" SATA HDD using the optional 3.5" SATA power/data cable set (one set per drive); place beside the unit on an anti-static mat.
- △ = swappable socket/adapter required when the interface isn't native to that port.
- USB is for firmware/utility only not a cloning target.
